Collect Firewall Metadata with Lumu VA and Huawei USG Firewall

Collect Firewall Metadata with Lumu VA and Huawei USG Firewall

Requirements

  • A Huawei USG Firewall device.
  • Have admin access to create a new Forwarding configuration.
  • Have the most recent version of the Lumu Virtual Appliance installed.

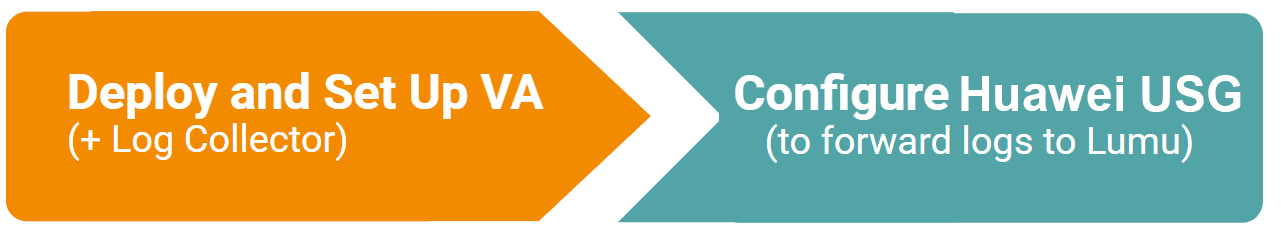

These are the general steps you should follow to configure a syslog server on Huawei USG Firewall to send all metadata to Lumu:

Deploy and Set Up Lumu VA

All the detailed steps and guidance to create, download and install a virtual appliance on your preferred hypervisor or Cloud solution are available in our documentation:
  1. Deploy Virtual Appliances
  2. Configure Virtual Appliances and setup collectors

Set up a Lumu VA Firewall Log Collector

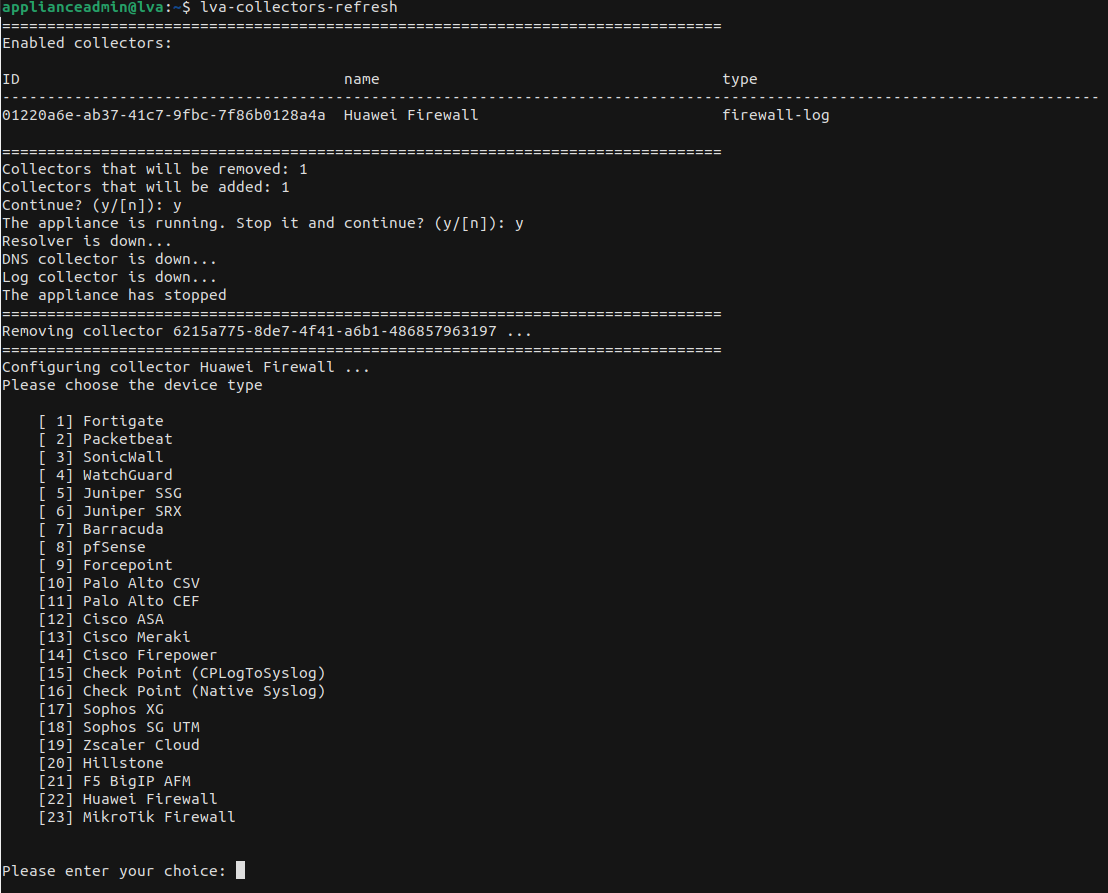

Go to the Lumu Virtual Appliance and refresh the VA Collectors settings by running the command lumu-appliance collectors refresh. If the appliance is running, it must be stopped in order to continue the setup process.


Select the option that refers to Huawei Firewall, then input the following data:

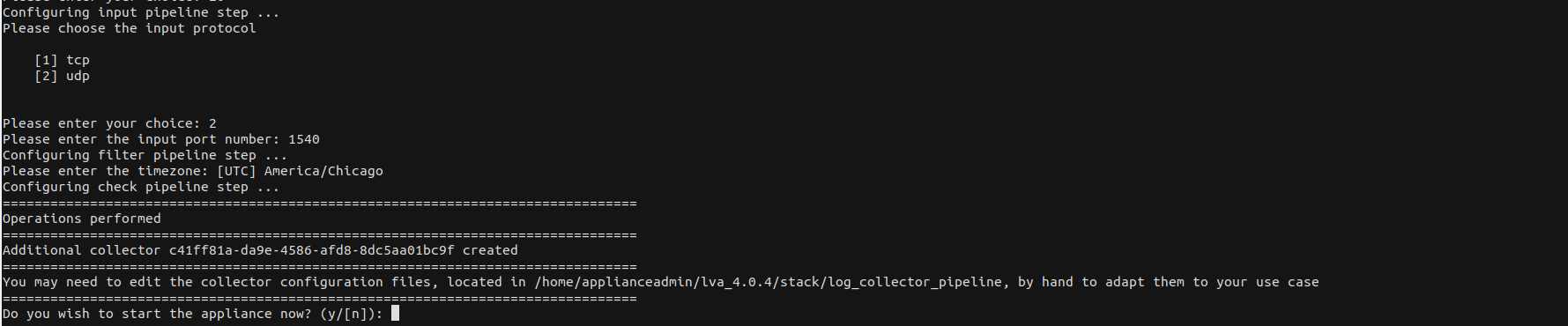

  • Protocol type: Select the UDP option. Huawei Firewall uses UDP protocol to send Syslog data.
  • Port number: Provide a number between 1024 and 65535, inclusive.
  • Timezone: The timezone for VA setup. Use the canonical ID (e.g. America/Chicago). You can use this external article for reference.

Configure Huawei Firewall to Send Metadata to Lumu VA

To add a new configuration, follow the steps in the Web: Example for Outputting Customized Syslogs to a Log Host document from Huawei’s Product documentation site. Make sure you follow these guidelines:
  • Create and customize a Syslog template by selecting and renaming each field prefix according to the following table:

Field
New prefix
vsys
vsys
Protocol
protocol
source-ip
source-ip
source-port
source-port
destination-ip
destination-ip
destination-port
destination-port
time
time
source-zone
source-zone
destination-zone
destination-zone
application-name
application-name
rule-name
rule-name
  • The Log format under the Configure Session Logs section must be set to Syslog.
  • Select the created template in the Session Log Content Format section.
  • The Log Format under the Configure Service Logs section must be set to Syslog.
