Requirements

1. Juniper SRX Firewall Junos version 20+.

2. Have admin access to configure a Syslog server on Juniper SRX.

3. Have the most recent version of the Lumu Virtual Appliance installed.

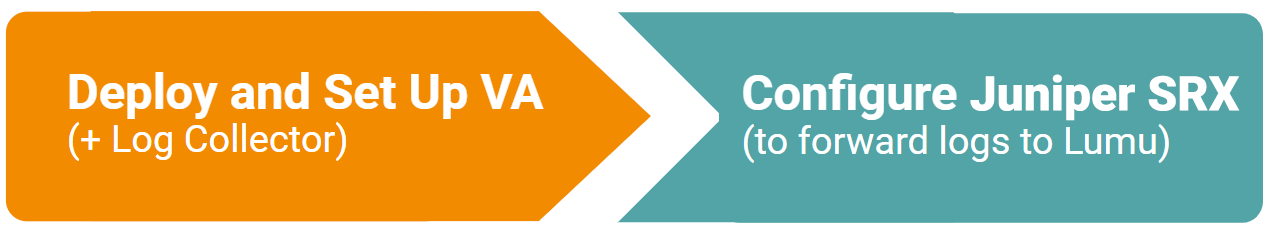

These are the general steps you should follow to configure a Syslog server on a Juniper SRX Firewall to send all metadata to Lumu:

Deploy and Set Up Lumu VA

All the detailed steps and guidance to create, download, and install a virtual appliance on your preferred hypervisor or Cloud solution are available in our documentation:

• Deploy Virtual Appliances
• Configure Virtual Appliances and set up collectors

Set up a Lumu VA Firewall Log Collector

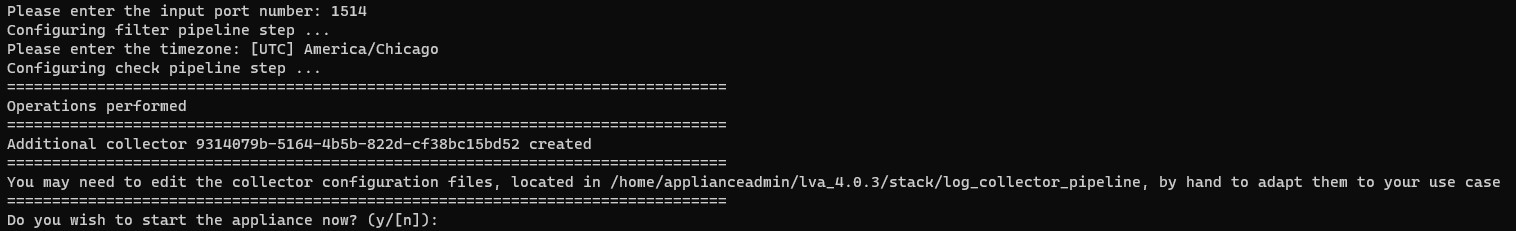

Go to the Lumu Virtual Appliance and refresh the VA Collectors settings by running the command lumu-appliance collectors refresh . If the appliance is running, it should be stopped for setting up collectors.

Select the option that refers to Juniper SRX and the format that suits you best, then inform the following data:

• Protocol type : you can select between TCP and UDP according to your infrastructure and your Juniper’s settings.
• Port number : provide a number between 1024 and 65535, inclusive.
• Timezone : The timezone for setting up the VA. Use the canonical ID (e.g. America/Chicago). You can use this external article for reference.


Configure Juniper to Send Metadata to Lumu VA

Juniper SRX Firewall can send administrative logs and traffic logs. You need to configure your Firewall to send traffic logs or data-plane logs.

Add a new stream configuration

First, you need to add a new Stream configuration for Lumu VA.

1. Access your Juniper Firewall in edit mode using your preferred ssh client.
2. To add a new Stream logging configuration, run the following commands:
   set security log stream
   set security log stream  format syslog
   set security log stream  category all
   set security log stream  host
   set security log stream  host  port
   set security log stream  transport protocol [tcp|udp]

   Where:


<stream_name>: Distinctive name to the stream Syslog configuration.
<lumu_va_ip>: IP address of the Lumu VA.
<port>: Destination port number.

Use the one configured in the Lumu VA. In the transport protocol line, select the same protocol configured in the Lumu VA.

Configure your firewall rules to log traffic

You need to configure each of your Firewall rules to log at the session init or close. You can configure it using the GUI or the CLI access.

Using the GUI

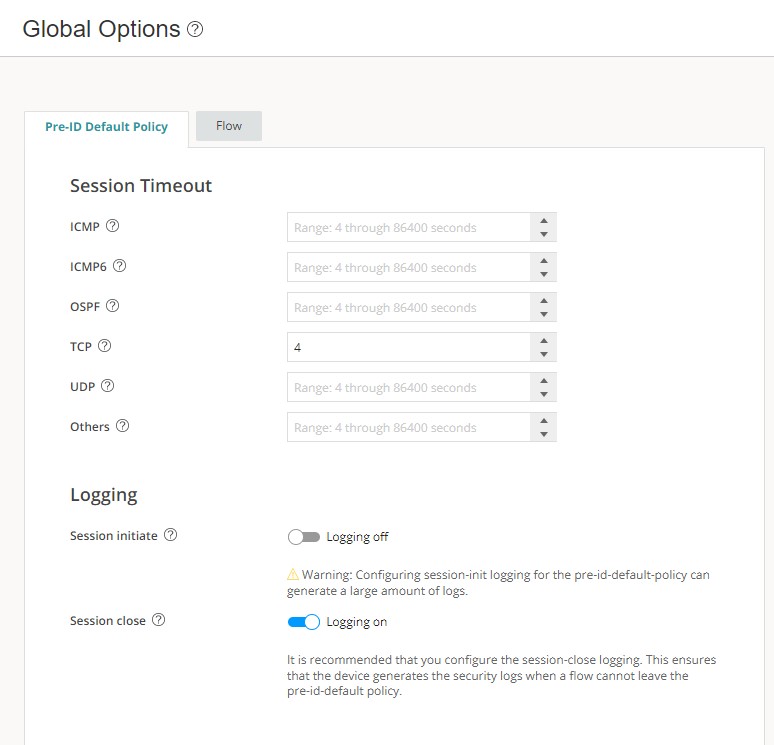

You can set the global Firewall options to enable the Session close logging by default. To do so, go to the menu Security Policies & Objects > Security Policies . Click on the Global Options button. There, enable the Session close toggle. Click the OK button. Finally, commit your changes.

You can enable the Session initiate option in the Global configuration . It is not recommended to do that. Instead, enable this option per rule. Session initiate logging is required for the rules that explicitly block the traffic. Change the configuration in each rule accordingly.

Using the CLI

To configure the logging in the global options, access your Juniper Firewall using your preferred SSH client in edit mode. Run the following command:

Remember to commit your changes.

To enable the Session initiate logging per rule using CLI, you can use the following command.

Where:

Remember to commit your changes.

It is recommended to enable the session initiate logging for rules that explicitly deny traffic. Otherwise, this traffic will not be reported to Lumu VA.

(Optional) Enable entity logging in Firewall zones

To enhance events sent by your Juniper firewall, it is recommended to enable identity logging in the zone configuration. You can enable it using the GUI or CLI.

Using the GUI

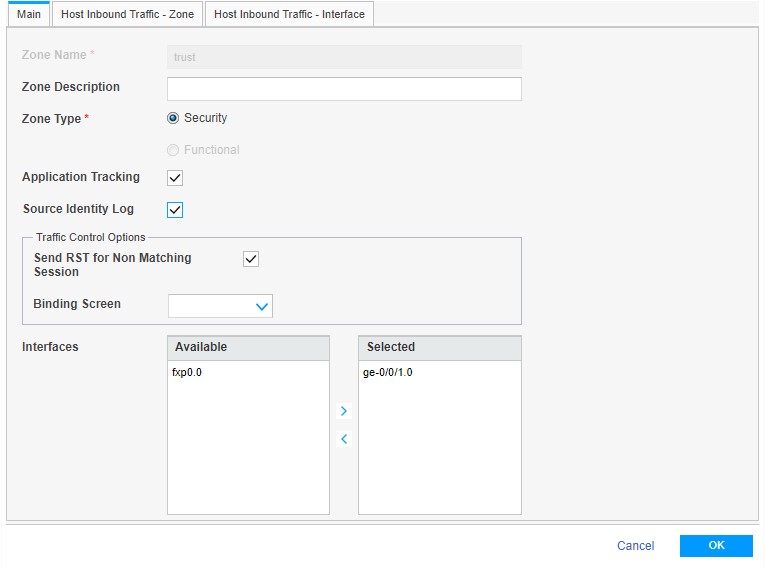

You can set the identity logging in each zone of interest. This will reflect the identity information of the user in the logs if identity is configured in the Firewall. To do so, go to the menu Security Policies & Objects > Zones/Screens . Edit the zone of interest, and enable the toggle Source Identity Log . Finally, click the OK button and commit your changes.

Using the CLI

To configure the Source Identity Log option in each zone of interest using CLI, access your Juniper Firewall using your preferred SSH client in edit mode. Run the following command.

Remember to commit your changes.

For more details on the configuration settings consult the Juniper SXR official documentation article Configuring System Logging for a Security Device.
