Collect Firewall metadata with Lumu VA and FortiGate

Requirements

  1. FortiGate Next Generation Firewall version 5.6+.
  2. Have admin access to configure a syslog server on FortiGate.
  3. Have the most recent version of the Lumu Virtual Appliance installed.

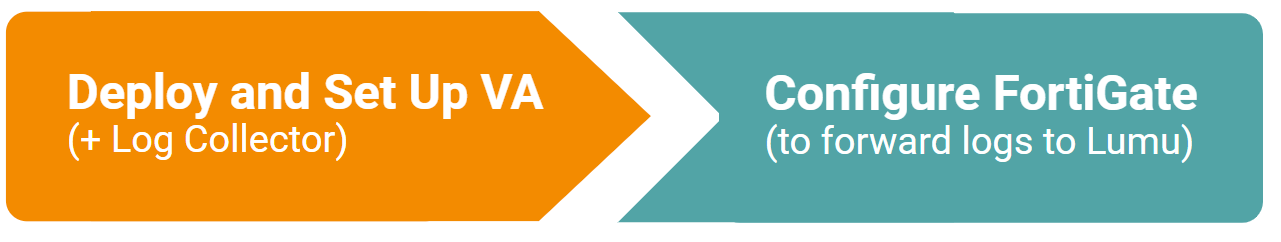

These are the general steps you should follow to configure a syslog server on a FortiGate to send all metadata to Lumu:


Deploy and Set Up Lumu VA

All the detailed steps and guidance to create, download and install a virtual appliance on your preferred hypervisor or Cloud solution are available in our documentation:

  1. Deploy Virtual Appliances
  2. Configure Virtual Appliances and set up collector

Set up a Lumu VA Firewall Log Collector

Go to the Lumu Virtual Appliance and refresh the VA Collectors settings by running the command lumu-appliance collectors refresh . If the appliance is running, it should be stopped for setting up collectors.

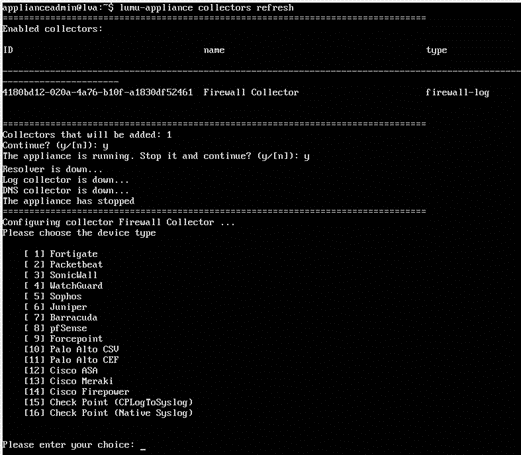

Example of screen when setting up a Firewall Collector Example of screen when setting up a Firewall Collector

Select the option that refers to FortiGate and the format that suits you best, then inform the following data:

  1. Protocol type : you can select between TCP and UDP according to your infrastructure and your FortiGate’s settings.
  2. Port number : provide a number between 1024 and 65535, inclusive.
  3. Timezone : The timezone for setting up the VA. Use the canonical ID (e.g. America/Chicago). You can use this external article for reference.

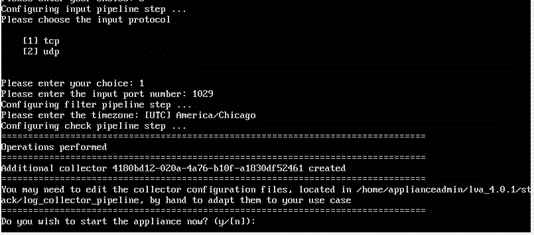

Example of screen when setting up a Firewall Collector Example of screen when setting up a Firewall Collector

Configure FortiGate to Send Metadata to Lumu VA

This Next Generation Firewall (NGFW) version can send syslog to up to 4 different devices.

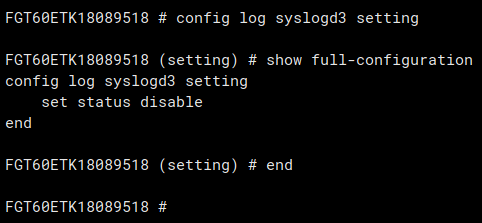

1. Before starting the configuration, check if the syslog service is available with the following commands:
config log syslogd3 setting
show full-configuration

Replace “ syslogd3 ” with the syslog number that you want to configure.
If you get “status disable” it means that the service is free.

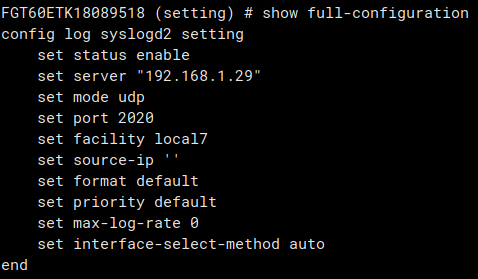

2. Configure the syslog parameters:
config log syslogd3  setting
set status enable
set server IP_Lumu_Virtual_Appliance
set port 1514
end

Replace the port number for communication with the syslog server, it must be higher than 1024. Replace “syslogd3” with the syslog number that you want to configure.

3. It is important to be sure that you have enabled all logs related to URL filtering: To log all URLs through FortiGate, use the following command to capture all URLs.
config  webfilter profile
edit webfilter-log\ all
set web-url-log enable
set extended-log enable
set log-all-url enable
end

Notes
For more details on the configuration settings, consult the Fortinet official documentation about Configuring m ultiple SYSLOG servers  and Logging all user traffic URLs .
