This article shows how to leverage the Lumu Defender API and Elastic Security API to mitigate security risks.

Requirements

• Elastic Security subscription
• A Elastic Security subscription with the Elastic Defend Integration installed.

• Lumu Defender API key
• To retrieve an API token, please refer to the Defender API document.

• Script host.

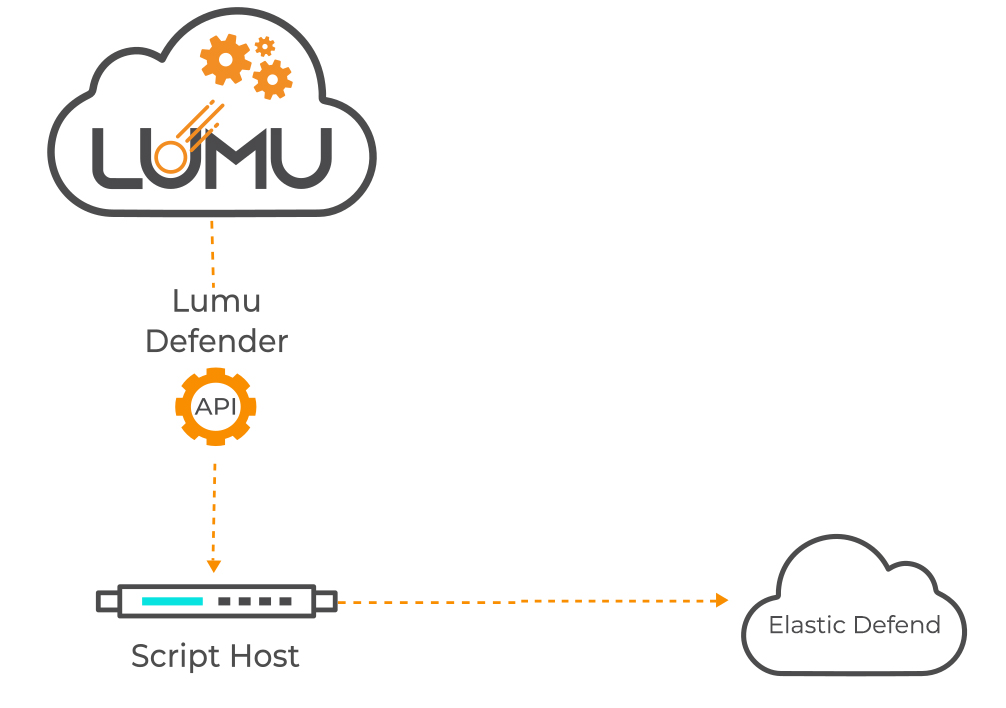

• A scripting host is required to deploy the integration. This host must have Internet visibility over Lumu Defender API endpoints and Elastic Security Cloud. According to the deployment model you select, you will need a host with:
• Python 3.10+
  OR
• A Docker-enabled host.


• Script package
• Contact the Lumu support team to request the package we created to deploy the required files.

Set up the Elastic Security console

Follow these steps to set up your Elastic Security console to work with Lumu integration.

Create a role (recommended)

For security reasons, it’s recommended to create a specific role with the required permissions. Follow these steps to create the lumu-integration role.

1. Expand the left hamburger menu, then click on the Stack management menu under the Management section.

2. Click on the Roles menu under the Security section.

3. Click on the Create role button.

4. Under the Create role window, fill in the required data using these guidelines:

a. Role name: lumu-integration

b. Add manage_own_api_key as a Cluster privilege

c. Add a Kibana privilege.

i. Spaces: All spaces

ii. Expand the Security section. Customize the Blocklist privilege to All

5. Finish clicking on the Create global privilege button

Create a user (recommended)

After creating the limited role, you need to create a user for the integration and assign to it the lumu-integration role.

1. Expand the left hamburger menu, then click on the Stack management menu under the Management section.

2. Click on the Users menu under the Security section.

3. Click on the Create user button.

4. Under the Create user window, fill in the required data. You can leave the Full name and Email address fields blank.

5. Finish clicking on the Create user button.

Create an API key for the integration

To configure the integration, you need to generate a Personal API key for the user the integration is being set up for. To create this Personal API key follow these steps while logged in your Elastic console with the user you will use for the integration:

It’s recommended to use the user with the role suggested in the previous steps. This way, the generated key will operate with the minimum set of permissions required by the integration.

1. Expand the left hamburger menu, then click on the Stack management menu under the Management section.

2. Click on the API Keys menu under the Security section on the left navigation bar.

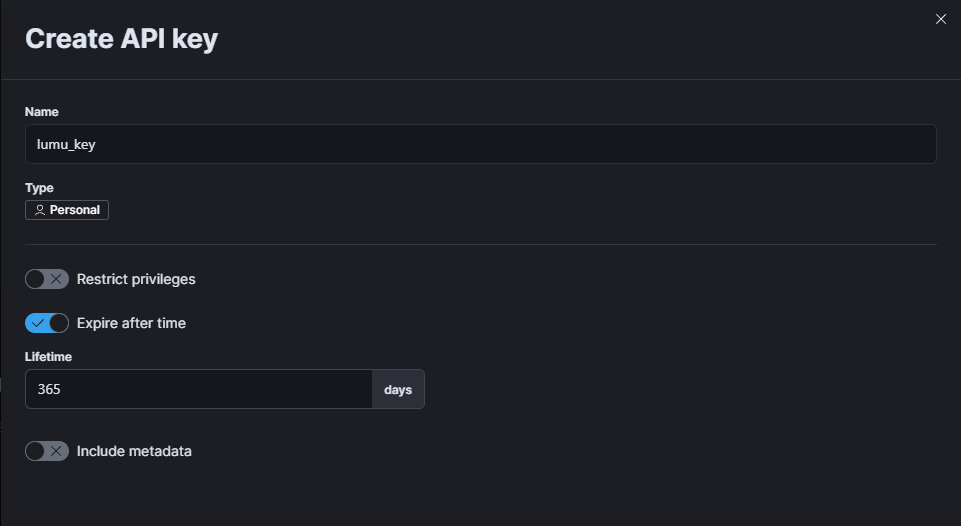

3. Click on the Create API key button.

4. Under the Create API key window, fill in the required data.

5. Finish clicking on the Create API key button.

Copy the API key. This value will be used for setting up the integration in later steps.

Collect your Elastic base URL

The Elastic base URL is required for setting up the integration in later steps. You can extract this piece of data while logged into your Elastic console. Check your navigation bar and copy the part of the URL shown in the image.

The base URL format is https://HOSTNAME:PORT

Identify and collect UUID from policies (optional)

If you want to attach the pushed IOCs to a particular set of policies, you need to identify them and collect their UUIDs using your Elastic console.

1. Expand the left hamburger menu, then click on the Manage menu under the Security section.

2. Click on the Manage menu under the Security menu section.

3. In the Manage window, click on the Policies menu.

4. In the Policies window, click on the policy you want to attach the IOCs to.

5. From the navigation bar, extract the policy UUID according to the next image

6. Repeat the steps 4 and 5 for each policy.

Collect the required data from Lumu portal

The integration set-up process needs you to collect this information from Lumu portal:

• Lumu Defender API key
• Company UUID

Log in to your Lumu portal and run the following procedures to collect these data.

Collect the Lumu Defender API key

To collect the Lumu Defender API key, please refer to the Defender API document.

Collect your Lumu company UUID

To collect your Lumu company UUID, log in to your Lumu portal. Once you are in the main window, copy the string below your company name.

Deploy the integration

There are 2 environment options to deploy the script, select the one that best fits your current infrastructure.

• Run it as a Python script executing the install.sh bash file


• Creates a Python virtual run time and its dependencies for you

• Installs the crontab line in the host


• Run it as a Docker container.


Whichever alternative you select, you need to first unpack the integration package shared by our Support team.

Unpack the deployment package provided by Lumu in your preferred path/folder. Keep in mind this location, as it will be required for further configurations. From now on, we will refer to this folder as <app_lumu_root>.

If you use the install script, use the uninstall.sh bash file to remove the integration from the host

Set up the configuration files

To set up the integration, you need to add and edit two configuration files:

• companies.yml: this file contains the information collected from the Lumu portal
• integrations.yml: this file contains the information collected from your Elastic instance

Inside the integration package, you will find sample files you can use to build your configuration files. These files are companies_template.yml and integration_template.yml.

Complete the companies file

The companies file is in charge of defining how the integration connects to Lumu and extracts the information of the incidents and related indicators of compromise.

-
  lumu:
    uuid: "<COMPANY-UUID>"
    [name: "<COMPANY-NAME>"]
    [contact_name: "<CONTACT_NAME>"]
    [contact_email: "<CONTACT_EMAIL>"]
    defender_key: "<DEFENDER_API_KEY>"
    hash_type: "<HASH_ALG>" # sha256 | sha1 | md5
    ioc_types: # list of ioc types, option one, many or all
      - ip
      - domain
      - url
      - hash
    adversary:  # list of adversary types, option one, many or all
      - C2C
      - Malware
      - Mining
      - Spam
      - Phishing
    days: 30 # MIN 1, MAX 30

Within this file, COMPANY_UUID and DEFENDER_API_KEY fields are mandatory. Please use the values captured in the previous steps. The ioc_types values must match with the IOC types required by the integration, in this case, hash.

Complete the integrations file

The integration file contains the information required for the integration to connect and interact with your Elastic deployment:

- lumu:
    uuid: "<COMPANY_UUID>"
    days: 30 # Int(get incidents from X days of the ioc manager local db)
  app:
    clean: false # true | false
    ioc:
      - hash
    hash_type: sha256 # sha256 | sha1 | md5
    api:
      KibanaUrl: "<KIBANA_FULL_URL_PORT>"
      ApiKey: "<KIBANA_APIKEY>"
    Policies: # Allow multiple policies, the global policy takes precedence, default value is [], it means, global policy
      - "policy:<POLICY_UUID1>"
      - "policy:<POLICY_UUID2>"
      - "policy:<POLICY_UUID3>"
      - "policy:all"

Within this file, COMPANY_UUID, KIBANA_FULL_URL_PORT, and KIBANA_APIKEY fields are mandatory. If you want to attach the hashes to a particular set of Elastic policies, fill in the UUID information according to the procedure described in Identify and collect UUID from policies.

Deploy Integration as script

To deploy the integration as script, you need to run the install.sh script inside the integration package.

Make sure the install.sh script has the execution permission before running it.

To run the installation script, locate yourself in the app_lumu_root folder, then execute this line through CLI.

The installation script will set up the Python environment and two different cron jobs.

If you want to modify the default running interval set up by the installation script, you can modify the latest crob job entries based on your environment requirements.

Script details

To use the script, you must locate yourself on the path selected for deployment (<app_lumu_root>). Use the following command to show all options available for the package:

Usage: elastic_lumu [-h] [--config CONFIG] [--ioc-manager-db-path IOC_MANAGER_DB_PATH] [-v] [-l {screen,file}] [--hours HOURS]

Usage Examples

Task: query hashes related to Lumu incidents with default options

To query all the hashes related to Lumu incidents triggered in the last 30 days, run the following command.

To clean the existing records in Elastic, just set-up the clean flag in the integrations.yml file to true.

Then, run the integration script as follows:

The records not manipulated by the integration will be preserved

Other tasks

According to your needs, you can combine the examples shown, also, adding the –logging {file, screen} and –verbose argument can be used for better understanding of what can be rolling wrong.

Deploy as a Docker container (Optional)

If you have a Docker environment, you can select this option to run the integration as a Docker process. To deploy and run your integration as a docker container, locate yourself at the <app_lumu_root> folder, and follow these instructions:

1. Build the container by running the following command.

Do not forget the dot "."

2. Run the container by using the following command.

With this mode, your integration will run every 30 minutes.

Troubleshooting

For troubleshooting purposes, you can run the following commands:

To log in to your container using an interactive shell:

To collect integration logs:

Expected results

After running the integration, you will see new entries in the Blocklist section, if there was any detection with hash records like this.

Troubleshooting and known issues

To identify failures in the script execution, use the -v flag. The script execution log will show more detailed information.

The application logs will be redirected to lumu.log file. The file errors.log stores only the errors to make them easier to find and aid the troubleshooting process.

Another instance is running

If you receive the following error.

There could be another instance running. To check this, open the pid.pid file in the integration folder. This file stores the process ID if it’s running.
